Small Rural Home Lighting System
Indian government claims that most of Indian villages have been connected to power grid. But the fact is that this Power Grid provides power for less than 10hours per day to villages. Power production in India is 15% short of demand, rural population are the most deprived ones. Grid connection is not there in almost 150,000.
This system helps to have Power when it is most needed, specially after dusk, for children to study, for kitchen, small tasks at home. This Lighting system is best suitable for rural small houses like huts, very small shops, business This is small independent system of only DC power supply. The panel can be kept on the roof.System includes two LED bulbs and one DC fan. The system is indigenously developed in India by Banyan Link Co Japan.

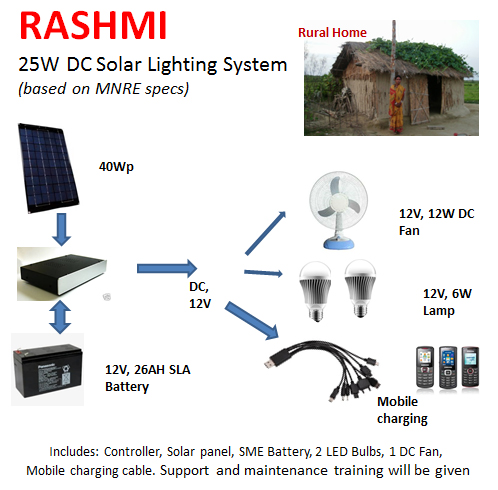

Rural Home Solar Lighting System Includes:
* 25W Controller Unit * 40W solar panel * 12V, 26Ah sealed Lead Acid battery * 2 LED bulbs, 1 DC fan, * Universal Mobile charger, * onnecting cables
Spec for Charger/Driver
* Capacity - 25W/12V DC * Solar panel - 40Wp * Battery - 12V, 26Ah * Battery low cut-off - 10.5V
Protections, features
* Low idle current, long battery life * Battery, solar panel reverse polarity protection * Battery deep discharge and overcharge protection * High surge load handling capability * Overload and short circuit protection * 3 LEDs display states of – operation mode, state of charge, fault condition * High internal temperature fault protection
